AI-PASS1001 DSRC TRANSPONDER
ULTRA LOW-POWER ON-BOARD UNIT WITH RF IMMUNITY
OVERVIEW
AI-PASS1001 DSRC is a compact, on-board
unit (OBU) that blends unobtrusively into a
vehicle’s interior and supports a wide variety of
applications, including:
- Electronic tolling
- Automatic vehicle Identification (AVI)
- Electronic registration identification (ERI)
- Access control and parking
- Congestion charging

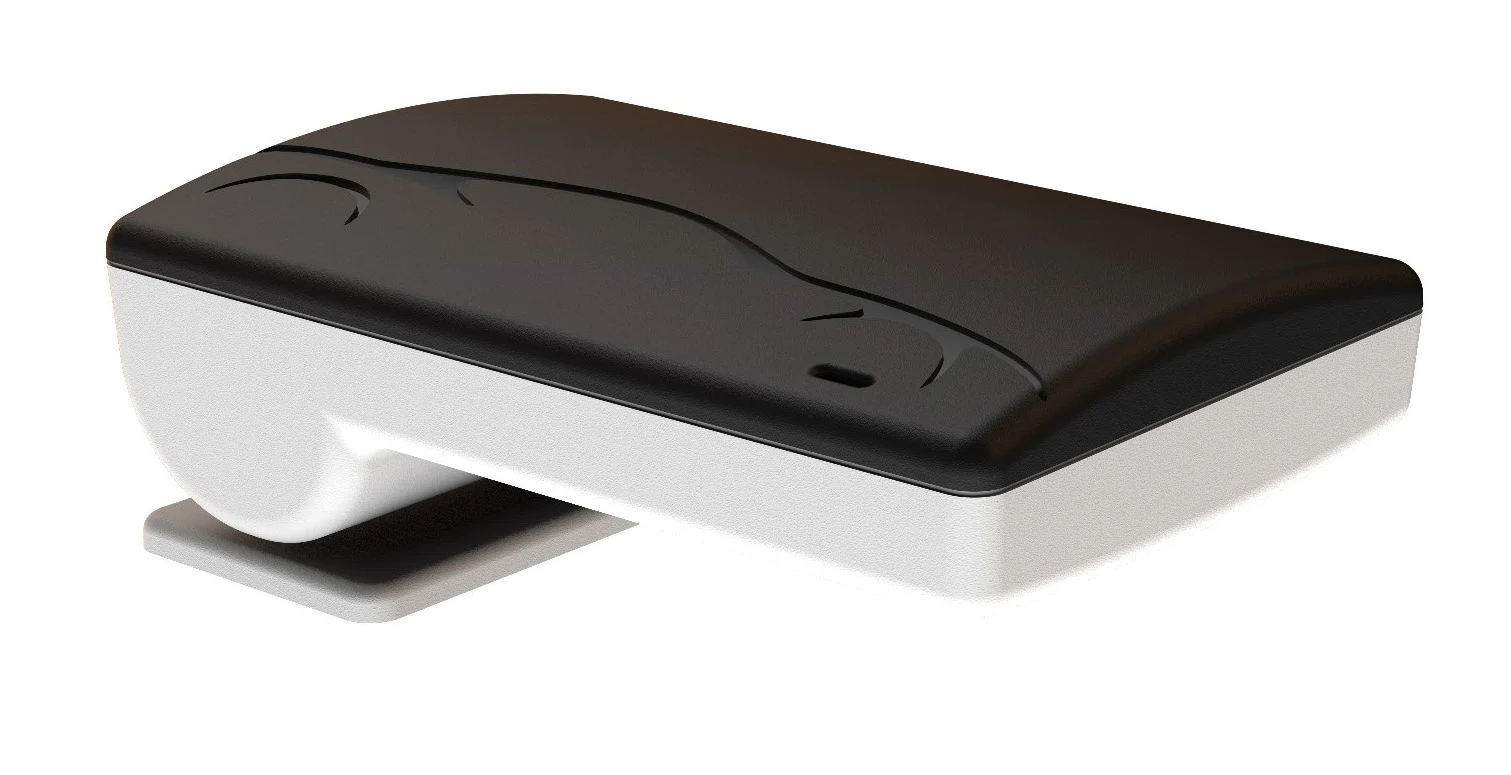

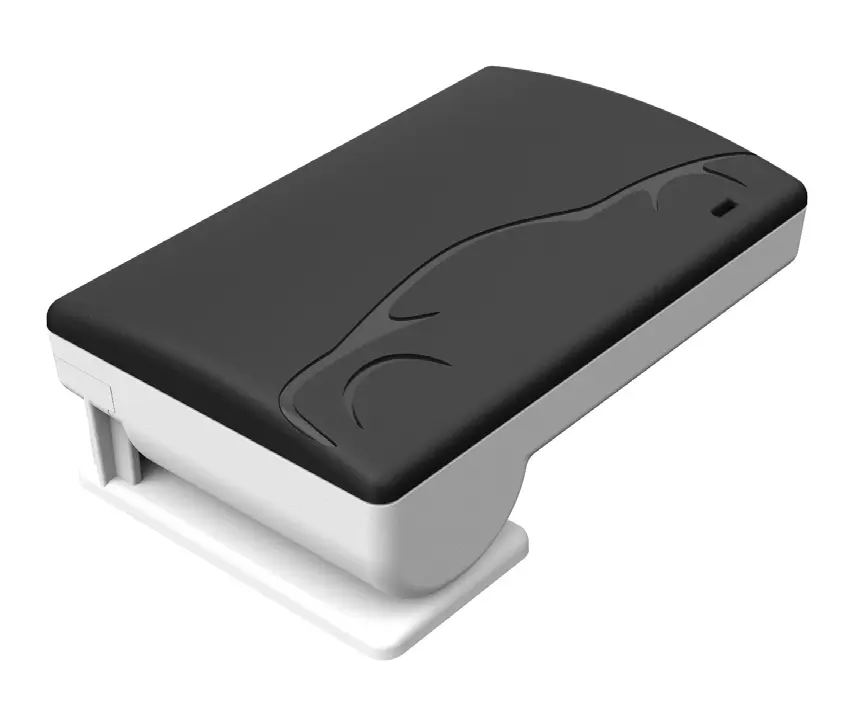

The AI-PASS1001 is small and lightweight,
enabling low-cost postal distribution to end
users. Easily mount and remove the OBU from
the windshield using a slide-in bracket that also
serves as a removal detector.
The AI-PASS1001 features a total of four beep
patterns to alert drivers with the option for
custom specific beep signals.
The latest technology ensures the lowest
possible current draw while supporting the
fastest DSRC processing on the market while
integrated signal discrimination enables
unprecedented battery life and immunity to
radio frequency (RF) sources.
Combining more than twenty years of
experience, proven technology, and current
state-of-the-art design, it supports all 5.8 GHz
CEN DSRC protocols.
BENEFITS
High immune to radio frequency interference
from the Wi-Fi enabled devices found in or
around the vehicle as well as LTE networks
Utilize low-power technology with ultra-fast,
state-of-the-art DSRC processing algorithm.
Blend unobtrusively into the interior of any
vehicle.
Mount and remove OBU with ease to the
windshield using a slide-in bracket.
Customize top and bottom surfaces of OBU
with a branded private label that is applied in
production.
| ULTR- FASTDSRC PROCESSING | HIGH RF IMMUNITY TO WI-FI AND LTE SOURCES |
MULTI-APPLICATION SUPPORT
EN15509/SmartDSRC/PISTA/TIS/ST1-Chile/GSS A1/
OGS.
Large application memory with up to six EN15509
applications.
Uses the DSRC RF interface to personalize OBU.
Supports: Multiple and custom applications
(elements).
Secure personalization and adding of new
applications and data content
Several personalization and key distribution
schemes.
Both EN13372 set A and B enabling universal DSRC
compliance.
STANDARDS
| CEN TC728: | EN13372 EN 12253 physical layer EN 12795 datalink layer EN 12834 application layer |
| Safety: | EN 60950-1 |
| Environmental: | IEC 60721-3-5 Class 5K3 / 5K4H / 5B1 / 5C1 / 5S1 / 5F1 / 5M3 |
| Applications | ISO 14906/EN15509 EFC ISO 17264/EN16312 ERI AS 4962-2005 ETC |
| EU directive compliance | RED 2014/53/EC RoHS 2011/65/EU WEEE 2012/19/EU |
LIFETIME & FUTURE-PROOF TECHNOLOGY
The AI-PASS1001 boasts a long lifetime with
intelligent signal discrimination – making it a
future proof technology:
Standard version has a seven-year lifespan.
Future-proof OBU technology with RF immunity
from all Wi-Fi sources found in or around the
vehicle.
No compromise on performance with ultra-fast
DSRC processing.
TECHNICAL SPECIFICATIONS
| Operating frequency: | 5.8 GHz |
| Downlink bit rate: | 500kbps |
| Uplink bit rate: | 250kbps |
| Sub-carrier frequencies: | 1.5MHZ (profile 0) 2.0 MHz (profile 1) |
| RTTT profiles: | EN 13372 sets A and B |
| Maximum communication range | ≤ 10m |
| Maximum radiated power: | -21.4 dBm (EIRP) |
| Power supply: | Single battery 950 mAh |
| Battery life time (MTBF): | 7 years |
| Transaction capacity: | Class A2 ref ISO 14815 |
| Environmental Class conditions: | Class H1 ref ISO 14815 |
| IP grade: | IP40 |
| Buzzer sound level: | > 55 dBA 1m |
| Operating temperature: | -40°C to +85°C |
| Storage temperature: | -40°C to +40°C |
| Dimensions (HWD): | With Bracket: 63 x 41 x 23 mm Without Bracket: |
| Weight: | 30 g |
www.aipass.hk transponder@aipass.hk
Product specifications may change at any time without notice and may not be available in all markets.
